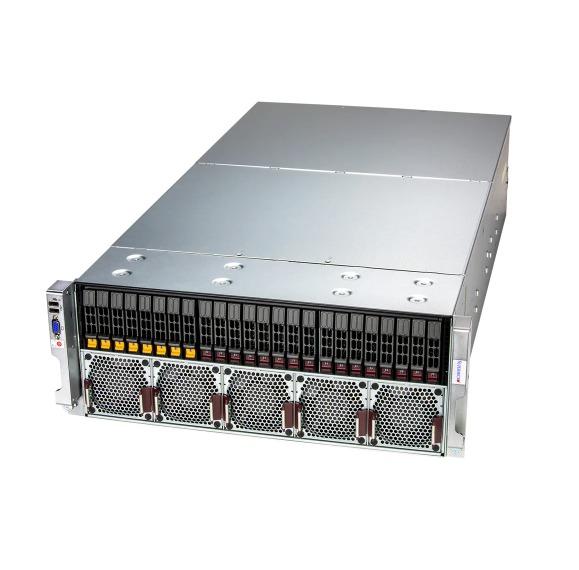

Supermicro AS-4145GH-TNMR 4U GPU Server With Quad AMD Instinct™ MI300A Accelerators

4U System with Quad AMD Instinct™ MI300A Accelerators (onsite service is required)

Key Applications:

Artificial Intelligence (AI), Large Language Model (LLM), Cloud Solution Provider (CSP), High Performance Computing (HPC), Research Lab,

Key Features:

Quad AMD Instinct™ MI300A processors; Onboard 512GB HBM3 unified memory; Optional PCIe configurations up to 8 PCIe x16 slots; Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible); Default 8 2.5" NVMe drive bays or Optional 24 2.5" SAS3/SATA3 drive bays via storage add-on card 2 Internal NVMe/SATA M.2 slots; 10 heavy duty fans w/ optimal fan speed control; 4x 2700W redundant Titanium level power supplies;

Form	Supermicro AS-4145GH-TNMR 4U GPU Server
Processors	Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs)
GPU	Max GPU Count: 4 onboard GPUs Supported GPU: AMD: Instinct™ MI300A APU GPU-GPU Interconnect: AMD Infinity Fabric™ Link
System Memory	Slot Count: Onboard Memory Max Memory: Up to 512GB non-ECC HBM3
Drive Bays Configuration	Default: Total 8 bays 8 front fixed 2.5" NVMe drive bays Option A: Total 16 bays 16 front fixed 2.5" NVMe drive bays Option B: Total 24 bays 24 front fixed 2.5" SAS/SATA drive bays (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key 2280/22110)
Expansion slots	Default 4 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x8 FHHL slots Option A* 4 PCIe 5.0 x16 FHHL slots 6 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible) Option B* 6 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option C* 14 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible) Option D* 4 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
Power Supply	4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 158.07 lbs (71.7 kg) Net Weight: 120.59 lbs (54.7 kg) Available Color: No Paint
