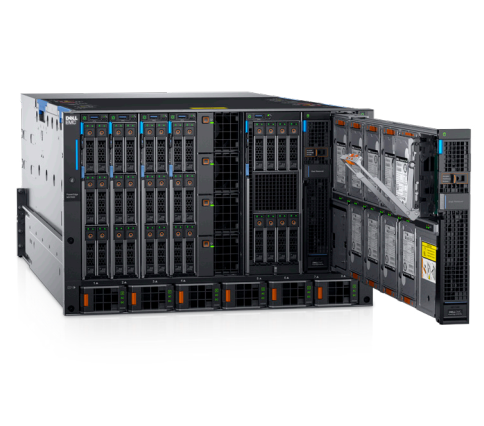

    7U Dell EMC Storage Server PowerEdge MX7000 Enclosure Modular

    Ask Lasest Price
    Model Number : MX7000, 210-ANYY
    Supply Ability : 100 Piece/Pieces per Quarter
    Price :
    Brand Name : Dell
    Certification : CE ROHS 3C
    • Product Details
    • Company Profile

    7U Dell EMC Storage Server PowerEdge MX7000 Enclosure Modular

    Specification
    PowerEdge MX7000
    Features
    Technical Specification
    Processor
    Up to 6 3000W; PSU and grid redundancy support
    Fans
    5 rear- and 4 front-accessible hot-swap fans
    Dimensions (LxWxD)
    816.8mm (32. 16 inches) x 482mm (18.98 inches) x 307.4mm (12. 10 inches)
    Rack Units
    7U
    Embedded mgmt
    MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular);
    running on up to 2 redundant MX9002m management modules
    Unified control: single management point for server, storage and networking
    Intelligent automation: Operational template methodology and comprehensive RESTful API
    Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module option
    On compute sled:
    As every other PowerEdge server, the integrated Dell Remote Access Controller (iDRAC)9
    with Lifecycle Controller (LC)
    Bezel
    OpenManage™ SW
    OpenManage Enterprise
    OpenManage Essentials
    OpenManage Mobile (OMM)
    OpenManage Power Center (OMPC)
    Integrations &
    Connections
    Integrations:
    Microsoft® System Center
    VMware® vCenter™
    BMC Software (available from BMC)
    Ansible by Red Hat
    Connections:
    Nagios Core and Nagios XI
    Oracle Enterprise Manager
    Microfocus Operations Manager (OM) and Operations
    Manager i (OMi)
    IBM Tivoli Netcool/OMNIbus
    Security
    TPM 1.2/2.0 (optional)
    Cryptographically signed firmware
    Silicon Root of Trust
    Secure Boot
    System Lockdown (requires OpenManage Enterprise)
    System Erase
    Embedded NIC
    Networking Options (NDC)
    Fabric options: Up to 2 pairs of redundant general-purpose switch or pass-through modular bays (Fabrics A and B);
    redundant pair of storage specific switch bays (Fabric C)
    Up to 25GbE, 32Gbps Fibre Channel, 12Gbps SAS
    GPU Options
    Front Ports
    2 USB 2.0 Type A or KVM control (keyboard and mouse only)
    1 USB 2.0 Type Micro-AB
    direct management port
    1 Mini Display Port
    connector for video
    Front buttons/indicators:
    Power button
    System status LED
    Health icon
    Ambient temperature icon
    IOM icon
    Fan icon
    Stack/group icon
    ID button
    Recommended support
    Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge
    solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more
    information. Availability and terms of Dell Services vary by region. For more information, visit Dell.com/itlifecycleservices.
    Dell Financial Services
    Deliver results with easy financing. Explore financial options that move at the speed of business.
    For more information, visit Dellemc.com/global-financial-services.
    PowerEdge Architecture
    PowerEdge MX
    PowerEdge FX2/PowerEdge FX2S
    PowerEdge VRTX
    Form factor
    7U enclosure with 8 slots
    Full-width, 2U enclosure
    Tower or 5U rack modular chassis
    Description
    Modular chassis that accommodates a variety of
    compute and storage sled combinations, connected
    by high-speed fabrics, sharing power, cooling and
    managed by embedded OpenManage Enterprise –
    Modular Edition systems management
    An industry standard 2U rack-mount chassis that
    supports shared, redundant power and cooling,
    I/O fabric and management infrastructure and
    accommodates compact, customizable blocks of server
    storage and networking.
    Integrates servers, storage, networking and
    management into a quiet data center under your desk
    I/O slots
    2 USB 2.0 Type A or KVM control
    (keyboard and mouse only)
    1 Mini Display Port connector for video
    FX2s: Supports up to 8 low-profile/half-length
    PCIe 3.0 modules
    Up to 8 PCIe slots
    Server Sleds
    Up to 8 PowerEdge MX740c
    Up to 4 PowerEdge MX840c
    Up to 8 FC430
    Up to 4 FC640
    Up to 2 FC830
    Up to 1 FC830 mixed with up to 2 FC640
    Up to 4 M640
    Up to 2 M830
    Storage Sleds
    Up to 7 PowerEdge MX5016s
    FX2S:
    Up to 2 FD332 mapped to 4 FC430
    Up to 3 FD332 mapped to 1 FC640
    Up to 2 FD332 mapped to 2 FC640
    Up to 2 FD332 mapped to 1 FC830
    Internal: Up to 12 x 3.5” or 25 x 2.5” drives
    (SED available)
    External: Up to four MD1200 (12 x 3.5” drives)
    or MD1220 (24 x 2.5” drives)
    Power Supplies
    Up to 6 PSUs; Platinum rated – 3000W output with high
    line AC input; N+1 or Grid redundancy support
    Hot-plug PSUs: Platinum rated – 2400 W, 2000 W,
    or 1600WAC in 1+1 redundant or ROA or
    2+0 non-redundant configurations
    Supports up to four 1100 W or 1600 W AC
    power supply units (PSU)
    in 3+1 and 2+2 redundant configurations
    Fans
    5 80 mm rear and 4 60mm front hot-swap fans
    8 hot-swappable fans provide cooling to the
    I/O components in the system
    6 hot-pluggable, redundant fan modules
    and 4 blower modules
    I/O and Ports
    Up to 2 pairs of redundant general-purpose switch or
    pass-through modular bays (Fabrics A and B);
    redundant pair of storage specific switch bays (Fabric
    C)
    Up to 25Gbps Ethernet, 32Gbps Fibre Channel,
    12Gbps SAS
    Choice of 3 Dell EMC modules: FN410s 4-ports SFP+,
    FN410t 4-port 10Gb Base-T,
    FN2210s 4-port Combination of 2 Fibre Channel and
    2 Ethernet ports, or 2 pass-through modules.
    Internal 1GbE 24-port switch
    Internal 10GbE switch
    Internal 1GbE 8-port pass-through module
    Embedded
    Management
    OpenManage Enterprise – Modular Edition
    (OME-Modular); running on up to 2 redundant
    MX9002m management modules
    Quick Sync 2 Bluetooth Low Energy (BLE)/
    wireless module option
    One Chassis Management Controller (CMC)
    Chassis Management Controller (CMC)

    PowerEdge MX7000 Enclosure 7U modular enclosure with 8 full width slots for combination of compute and storage sleds
