ODM SuperServer Supermicro 2U Storage Server SYS-2029TP-HTR 2200W Redundant

Ask Lasest Price
Model Number :	SYS-2029TP-HTR
Supply Ability :	100 Piece/Pieces per Quarter
Price :
Brand Name :	Supermicro

Add to Cart

Product Details
Company Profile

ODM SuperServer Supermicro 2U Storage Server SYS-2029TP-HTR 2200W Redundant

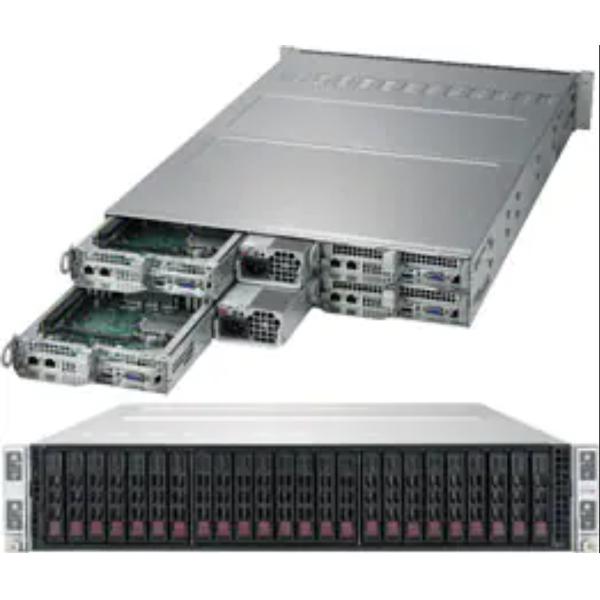

Supermicro Storage Server SuperServer SYS-2029TP-HTR - 2U Twin2 - 24x SATA - 2200W Redundant

Specification

Product SKUs		Expansion Slots
MBD-X11DPT-PS		PCIe	1 PCIe 3.0 x16 Right Riser Slot,
Physical Stats			1 PCIe 3.0 x24 riser,
Form Factor	Proprietary Twin		1 PCIe 3.0 x16 connector for SMC add-on cards,
Dimension	6.8" x 18.86" (17.27cm x 47.9cm)		1 PCIe 3.0 x8 connector for SMC add-on cards
Processor			PCIe 3.0 x16 SIOM LAN Networking slot
CPU	2nd Gen Inte XeonScalable Processors and Inte XeonScalable Processors	System BIOS
CPU	Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s	BIOS Type	AMI UEFI
Core	Up to 28 cores	Management
Note	BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP	Software	SuperDoctor5,SUM, KVM with dedicated LAN,SPM, IntelNode Manager,SSM,IPMI2.0, Watchdog
	BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP	Power Configurations	ACPI Power Management
	BIOS version 3.2 or above is required to support 2nd Gen Inte XeonScalable processors (codenamed Cascade Lake-R)	PC Health Monitoring
System Memory		Voltage	Supports system management utility, Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
Memory Capacity	16 DIMM slots	LED	UID/Remote UID
Memory Capacity	Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz	LED	BMC/IPMI Heartbeat LED
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)	Temperature	Monitoring for CPU and chassis environment
DIMM Sizes	LRDIMM: 64GB	Temperature	CPU thermal trip support
DIMM Sizes	RDIMM: 64GB	FAN	1x 4-pin fan header (up to 1 fan)
Memory Voltage	1.2V	FAN	PWM fan speed control
Error Detection	Corrects single-bit errors	Other Features	WOL, UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion detection, SDDC
Error Detection	Detects double-bit errors (using ECC memory)	Operating Environment
On-Board Devices		Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Chipset	Inte C621	Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
SATA	Inte C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10	Operating Relative Humidity Range	8% - 90% (non-condensing)
Graphics	1 ASPEED AST2500 BMC port(s)	Non Operating Relative Humidity Range	5% - 95% (non-condensing)
Network Controllers	Single LAN, Networking options provided via SIOM module
Input / Output
USB	2 USB 3.0 port(s) (2 rear)
Video Output	1 VGA port(s)
DOM	2 SuperDOM(Disk on Module) ports
TPM	1 TPM Header

ODM SuperServer Supermicro 2U Storage Server SYS-2029TP-HTR 2200W Redundant
