    Catalyst 9300 24 Port Data Switch With Fixed 4x1G SFP Uplinks, C9300L-24T-4G-E

    Ask Lasest Price
    Brand Name : Cisco
    Model Number : C9300L-24T-4G-E
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 50 pcs per week
    Certification : ce
    Price : Ask
    Delivery Time : To be negotiated
    • Product Details
    • Company Profile

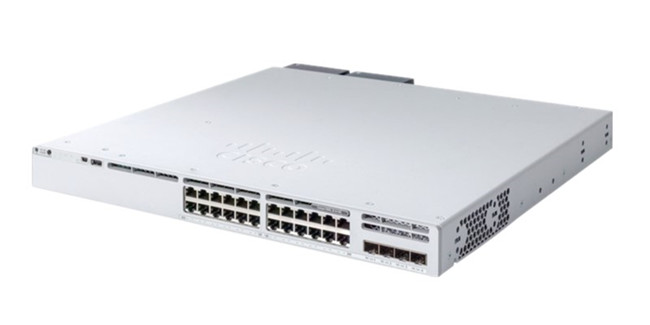

    Catalyst 9300 24 Port Data Switch With Fixed 4x1G SFP Uplinks, C9300L-24T-4G-E

    Product Information

    The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform

    built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely

    deployed switching platform. Catalyst 9300 Series switches form the foundational building block for

    Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they

    are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture.

    The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2.

    It sets new maximums for network scale. These switches are also ready for the future, with an x86

    CPU architecture and more memory, enabling them to host containers and run third-party applications

    and scripts natively within the switch.

    Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules.

    Catalyst 9300 24 Port Data Switch With Fixed 4x1G SFP Uplinks, C9300L-24T-4G-E

    C9300L-24T-4G-E Specification

    Cisco Catalyst 9300L Switches Specification
    Designed to replaceCatalyst 3850
    Supported IOSNetwork Advantage, Network Essentials
    Network modules optionsFixed Modules
    Stack TechnologyStackWise-320
    Stacking bandwidth320 Gbps
    Total number of MAC addresses32,000
    Total number of IPv4 routes (ARP plus learned routes)32,000 (24,000 direct routes and 8000 indirect routes)
    IPv4 routing entries-
    IPv6 routing entries16,000
    Multicast routing scale8,000
    QoS scale entries5,120
    ACL scale entries5,120
    Packet buffer per SKU16 MB buffer for 24 and 48 port Gigabit Ethernet models
    Flexible NetFlow (FNF) entries64,000 flow on 24- and 48-port Gigabit Ethernet models
    DRAM8 GB
    Flash16 GB
    VLAN IDs4094
    Total Switched Virtual Interfaces(SVIs)1000
    Jumbo frames9198 bytes
    Switching capacity56 Gbps - 176 Gbps
    Forwarding rate

    41.66 Mpps - 130.95 Mpps


    Packing information

    Cisco Catalyst 9300L 24 Port Data Switch C9300L-24T-4G-E is sealed in cisco original box. We will also

    pack C9300L-24T-4G-E with second box before shipping.

    Catalyst 9300 24 Port Data Switch With Fixed 4x1G SFP Uplinks, C9300L-24T-4G-E
